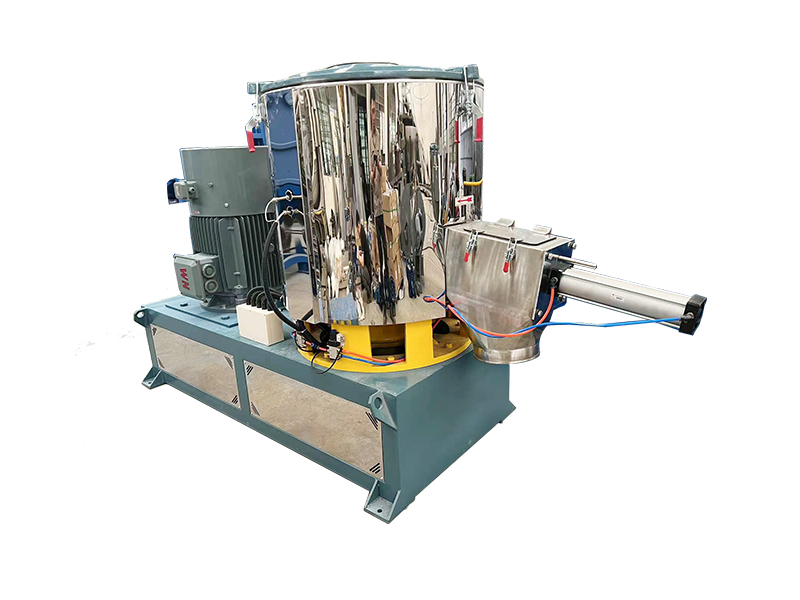

Product Introduction
The main shaft is directly driven by the electric motor through the belt pulley and gearbox. The special-shaped rotating blades installed on the main shaft rotate accordingly. Under centrifugal force, material rises along the conical wall of the fixed mixing tank and enters a rotary motion state, forming a swirling vortex motion. This mechanism easily mixes materials of different densities evenly in a short time — mixing efficiency is more than twice that of a general mixer.
Key advantage: Efficient mixing of different density materials — no segregation, uniform distribution.
Drive System
Electric motor → Belt pulley → Gearbox → Main shaft
Special-shaped rotating blades
Conical mixing tank wall
Key Features & Advantages
2x Mixing Efficiency
Outperforms general mixers by more than double — reduces processing time significantly.
Centrifugal Vortex Motion
Material rises along conical wall, creating swirling vortex for thorough mixing.
Different Density Compatibility
Easily mixes materials of varying densities evenly — no stratification.
Short Mixing Time
Rapid homogenization achieved in minimal time cycles.
Insulation Sleeve
Cool, heat, or insulate materials — meets specific material mixing requirements.
Top Inlet & Side Discharge
Raw materials and binders feed through upper inlet; mixed materials discharge from side port.
Working principle of high-speed mixer
The main shaft is directly driven to rotate by the electric motor through the belt pulley and gearbox. The rotating blades with special shapes installed on the main shaft rotate accordingly. Under the action of centrifugal force, the material rises along the conical wall of the fixed mixing tank and is in a rotary motion state, forming a swirling motion. It is easy to mix materials of different densities evenly in a short time, and the mixing efficiency is more than twice that of a general mixer. The various raw materials and binders involved in the mixing are fed into the upper inlet, and the mixed materials are discharged from the side discharge port of the mixing tank. To meet the mixing requirements of certain materials, the equipment is equipped with insulation sleeves that can cool, heat, and insulate the materials.
