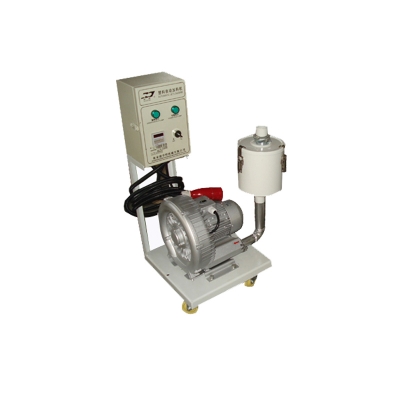

Product Application
This machine is used for pneumatic conveying of plastic resin granules based on low vacuum principle. It can be used with hopper dryer to automatically transfer materials to dryer. The ZJ Series Vacuum Loader is an essential material handling solution for plastic processing facilities, ensuring clean, efficient, and automated material transfer.
Key advantage: Low vacuum principle provides gentle material handling — prevents degradation of plastic resin granules during transfer.
Key Benefits
High efficiency conveying
Low noise operation
Reliable performance
Automatic material transfer
Product Features
High Efficiency
Optimized low vacuum system provides rapid material transfer with minimal energy consumption.
Low Noise
Quiet operation improves workplace environment — ideal for indoor installation near processing equipment.
Reliable Performance
Durable construction and robust components ensure consistent, maintenance-free operation.

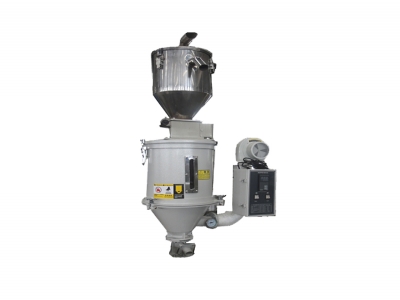

Dryer Integration
Can be used with hopper dryer to automatically transfer materials to dryer — creates a fully automated material preparation system, reducing manual labor and improving consistency.
Material Compatibility
Specifically designed for plastic resin granules — gentle conveying prevents material degradation, dusting, and segregation.
Product Parameters
| Item | ZJ100 | ZJ200 | ZJ400 | ZJ600 | ZJ1000 | ||
|---|---|---|---|---|---|---|---|
| Max. wind pressure(Pa) | 9800 | 9800 | 13000 | 14000 | 16000 | ||
| Max. air volume(m3/min) | 2 | 2 | 2.8 | 3.4 | 4.5 | ||
| Motor | Power(kw) | 1.1 | 1.1 | 1.5 | 2.2 | 5.5 | |
| Rotating Speed of motor r/min | 2800 | 2800 | 2800 | 2800 | 2800 | ||
| Transport capacity (kg/h) | Transport distance(M) | 5 | 100 | 200 | 400 | 600 | 1000 |
| 10 | – | 150 | 300 | 450 | 700 | ||
| 15 | – | – | – | 360 | 500 | ||
| Aspirating charging door volume (L) | 5/10 | 10/10 | 15/10 | 20/15 | 25 | ||
| Internal diameter of transfer soft pipe(mm) | 40 | 40 | 40 | 50 | 50 | ||
| Internal diameter of aspirating soft pipe (mm) | 50/40 | 50/40 | 50/40 | 60/50 | 60 | ||
| Appearance size (mm) |
520×400×905 370×480×820 296×231×450 296×266×460 |
520×400×905 370×480×820 298×266×620 298×266×460 |
520×400×905 370×480×820 298×266×670 298×266×460 |
620×400×970 420×560×870 392×312×655 392×312×510 |
800×530×1009 614×312×820 |
||
| Weight (kg) | 60 | 75 | 90 | 100 | 130 | ||
Product Application
This machine is used for pneumatic conveying of plastic resin granules based on low vacuum principle. It can be used with hopper dryer to automatically transfer materials to dryer.
Product Features
High efficiency
Low noise
Reliable performance
Technical Parameters
| Model | ZJ100 | ZJ200 | ZJ400 | ZJ600 | ZJ1000 | ||
| Max. wind pressure(Pa) | 9800 | 9800 | 13000 | 14000 | 16000 | ||
| Max. air. volume(m3/min) | 2 | 2 | 2.8 | 3.4 | 4.5 | ||
| Motor | Power(kw) | 1.1 | 1.1 | 1.5 | 2.2 | 5.5 | |
| Reotating Speed of motor r/min | 2800 | ||||||
| Transport capacity (kg/h) | Transport distance(M) | 5 | 100 | 200 | 400 | 600 | 1000 |
| 10 | – | 150 | 300 | 450 | 700 | ||
| 15 | – | – | – | 360 | 500 | ||
| Aspirating charging dorr volume (L) | 5/10 | 10/10 | 15/10 | 20/15 | 25 | ||
| Internal diameter of transfer soft pipe(mm) | 40 | 40 | 40 | 50 | 50 | ||
| Internal diameter of aspirating soft pipe (mm) | 50/40 | 50/40 | 50/40 | 60/50 | 60 | ||
| Appearance size (mm) | 520×400×905 370×480×820 | 520×400×905 370×480×820 | 520×400×905 370×480×820 | 620×400×970 420×560×870 | 800×530×1009 | ||
296×231×450 296×266×460 | 298×266×620 298×266×460 | 298×266×670 298×266×460 | 392×312×655 392×312×510 | 614×312×820 | |||
| Weight (kg) | 60 | 75 | 90 | 100 | 130 | ||
