Product Introduction
This mixer is mainly used for mixing PVC, carbon powder, biological materials, as well as various plastic ingredients, mixing, coloring, drying processes. Widely applied in plastics, rubber, food, chemical, pharmaceutical production fields. The KHR series mixers adopt advanced design, easy to operate, safe and reliable. Small size, low energy consumption, high efficiency, low noise — your ideal partner.
Key advantage: Advanced technology + reliable construction for demanding mixing applications.
KHR Series Highlights
- Small volume, light weight
- High efficiency, low energy
- Low noise operation
- Safe & convenient control
Application & Core Features
Versatile Applications
Plastics, rubber, daily chemical, lab material mixing, stirring, dry blasting, painting, etc.

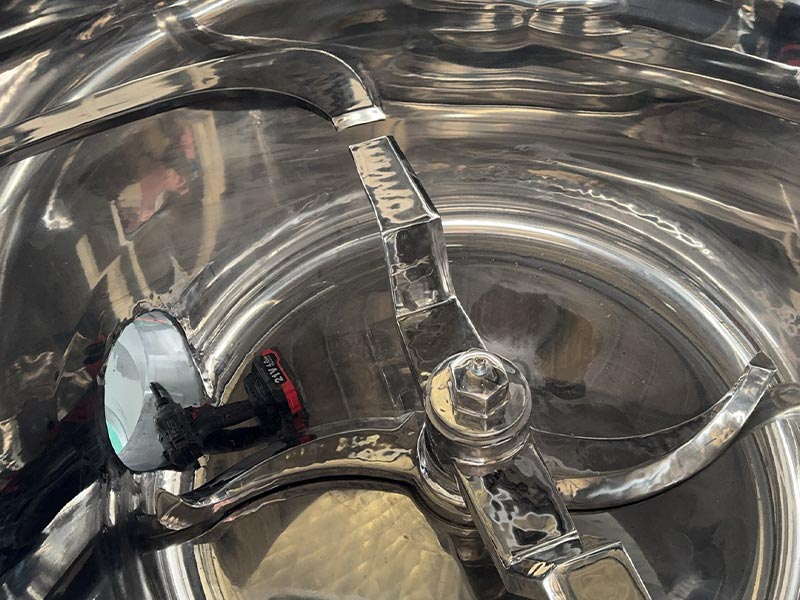

Premium Blade Construction
Blade is whole stainless steel cast, refined through static & dynamic balance test.
Multiple Heating Methods
Self-friction, electric heating, and various other heating options.
Dual Sealing System
Pot cover applied dual sealing — prevents dust leakage.
Intelligent Discharge Control
Intelligent Discharge Control Automatic temperature control & manual control discharge methods.
Energy Efficient & Compact
Low energy consumption, small footprint, low noise — perfect for modern facilities.
Product Parameters
| Total volume | Effective volume | Power of electrical machinery and heating | Principal axis rotary speed | Heating mode | Discharging mode |
|---|---|---|---|---|---|
| 5L | 3L | 1.1KW | 1400rpm | self-friction | hand work |
| 10L | 7L | 3KW | 2000rpm | peneumatics | |
| 25L | 20L | 5.5KW | 1440rpm | ||
| 50L | 35L | 7/11/3KW | 750/1500rpm | electric or steam | |
| 100L | 75L | 14/22/6KW | 650/1300rpm | ||
| 200L | 150L | 30/42/6KW | 475/950rpm | ||
| 300L | 225L | 40/55/9KW | 475/950rpm | ||
| 500L | 375L | 47/67/12KW | 430/860rpm | ||
| 800L | 600L | 83/110/15KW | 370/740rpm | ||
| 1000L | 750L | 110/160/28KW | 325/650rpm | self-friction | |
| 200L | 150L | 30/42KW | 650/1300rpm | ||
| 300L | 225L | 47/67KW | 475/950rpm | ||
| 500L | 375L | 83/110KW | 500/1000rpm |

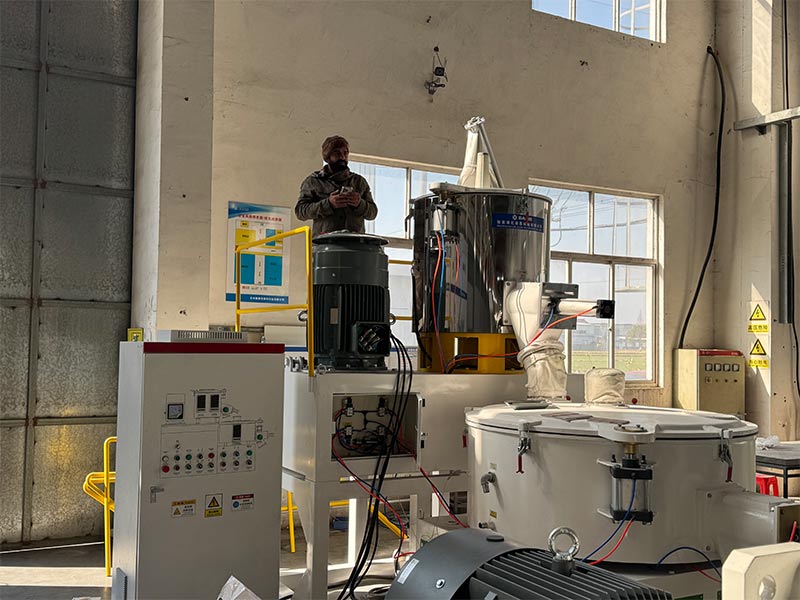

Customer factory visit

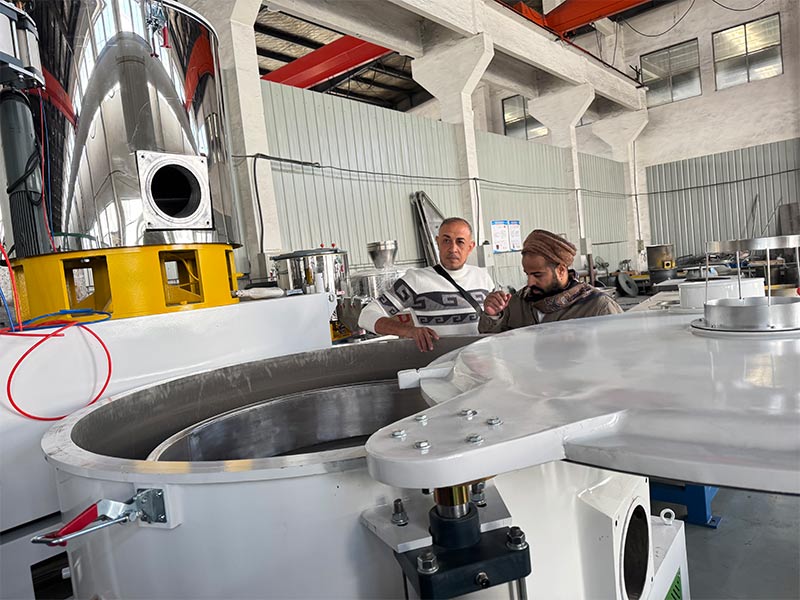

The customer’s technical team is inspecting the core rotor structure of the mixer. The equipment is operating smoothly, and the customer has given high praise to the mixing uniformity.
