Product Introduction

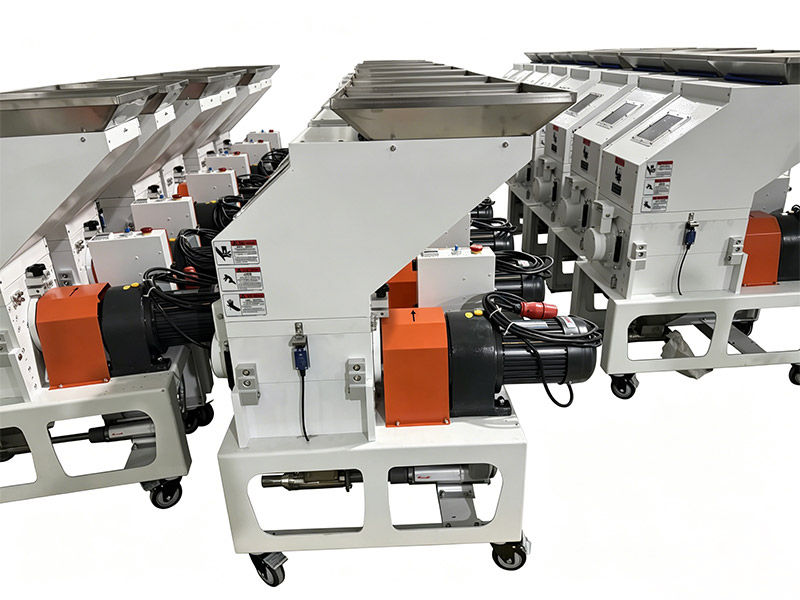

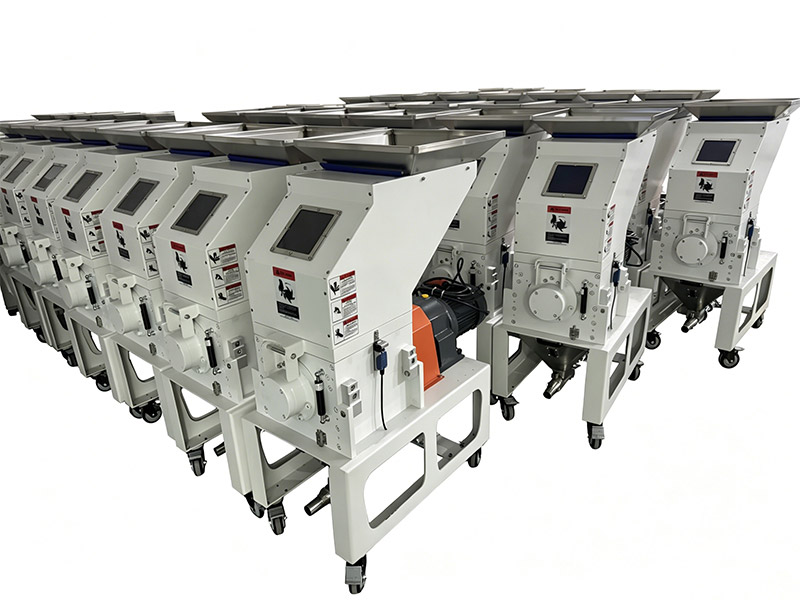

This crusher is a widely used industrial crushing equipment, designed to reduce various solid materials (ore, coal, chemical raw materials, etc.) into smaller particles or powder through mechanical actions like extrusion, shearing, and impact. The low-speed motor ensures quiet operation and minimal dust. For plastic industry, it is mainly placed next to plastic molding machines with manipulators to crush water material (sprue/runners) into granules, then the immediate recovery device sends them back for recycling.
Key benefit: Uniform particle size with minimal powder — granules can be immediately mixed with virgin material.
Unique Blade Design
Integrated tooth & claw blade design
High-quality Cr12MoV blades
Uniform particles, less powder
No-screen design
Key Advantages
High-Quality Gear Motor
Stable performance, long life, high transmission torque.
Integrated Blade Design
Tooth & claw integrated design for efficient crushing.
Compact & Space-Saving
Well-structured, space-saving, and easy to clean.
Transparent PC Hopper
Convenient viewing window for material status.
No-Screen Design
Uniform crushing particles, low powder content, ready to mix with new material.
Low Noise & Dust
Low-speed motor drastically reduces noise and airborne dust.
Wide Material Range
Crush PU, PET, PC, ABS, soft/hard water material.
Safety Protection System
Motor overload, power supply chain, safety switch.
Product Parameters
| Model | Medium speed 8 knives | Medium speed 10 knives | Medium speed 13 knives | Medium speed 15 knives |
|---|---|---|---|---|
| power | 2.2KW | 2.2KW | 3.7KW | 3.7KW |
| Crushing diameter(mm) | 236*270 | 270*290 | 310*375 | 265*430 |
| Feeding port size(mm) | 470*520 | 470*520 | 470*520 | 580*330 |
| Moving knife | 8*3=24 | 10*3=30 | 13*3=39 | 15*3=45 |
| Tool material | SKD-11 | SKD-11 | SKD-11 | SKD-11 |
| Rotational speed (R/Min) | 143 | 143 | 143 | 143 |
| screen | 6mm | 6mm | 6mm | 6mm |
| Crushing energy | 20-60kg/h | 30-100kg/h | 40-120kg/h | 50-150kg/h |
| Overall dimension(L*W*H)mm | 750*470*1250 | 970*460*1240 | 1180*560*1460 | 1100*800*1350 |
