Product Introduction
The Plastic Waste Agglomerate Machine is direct granulation equipment that pelletizes discarded thermoplastic plastic film and wall thickness products less than 2mm directly. It can granulate soft PVC, high and low pressure polyethylene, polystyrene, polypropylene and other waste thermoplastic products or film to agglomerate, as well as expanded polystyrene waste products. The final granules can be sent into an extruder for further pelletizing.
Key advantage: Working theory is different from ordinary extrusion granulating lines — no electric heating required, work whenever and wherever possible.
Applications
PE film / PE bags
PP woven bags / PP non-woven
Sheets · Flakes · Fiber
PA nylon · PET fabric & textile
Key Features
No Electric Heating Required
Working theory different from ordinary extrusion granulating lines — friction heat generates agglomeration.
Strong Double Bearing Design
Double bearing system for holding the main shaft — ensures stability and durability.
High Performance Blades
Precision-engineered blades for efficient cutting and agglomerating.
Automatic Water Flushing
Built-in water flushing system for easy cleaning and maintenance.
Core Functions
•Directly makes soft material into granules •Reduces material humidity •Improves product quality and increases profit
Compatible Materials
Soft PVC · LDPE/HDPE · PP · PS · EPS · PA nylon · PET fabric & textile · Fibers
Product Parameters
| Model | TL-200 | TL-300 | TL-400 | TL-600 | TL-800 |
|---|---|---|---|---|---|
| Total volume of pot | 200L | 300L | 400L | 600L | 800L |
| Effective volume of pot | 140L | 240L | 340L | 475L | 675L |
| Quantity of rotary blade | 2pcs | 2pcs | 3pcs | 4pcs | 4pcs |
| Rotary blade speed | 950r/min | 950r/min | 950r/min | 950r/min | 850r/min |
| Quantity of fixed blade | 7pcs | 11pcs | 9pcs | 9pcs | 11pcs |
| Motor power | 55kW | 75kW | 90kW | 90kW | 110kW |
| Voltage | 415V 50HZ | 415V 50HZ | 415V 50HZ | 415V 50HZ | 415V 50HZ |
| Size(mm) | 2000*950*1650 | 2000*950*1650 | 2500*1050*1850 | 2500*1000*2000 | – |
| Capacity | 200kg/h | 300kg/h | 400kg/h | – | – |

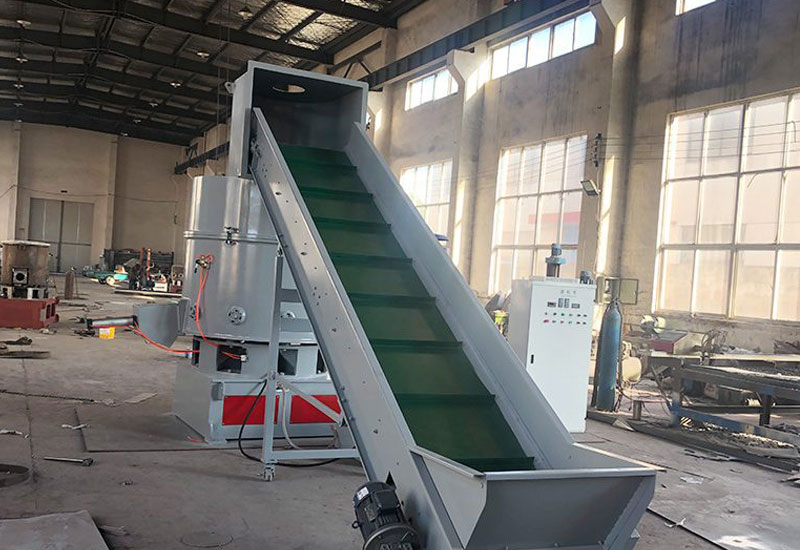

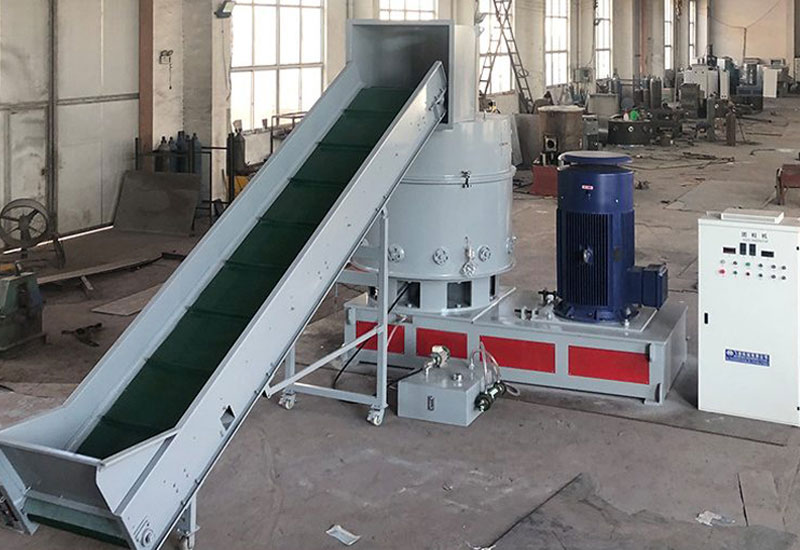

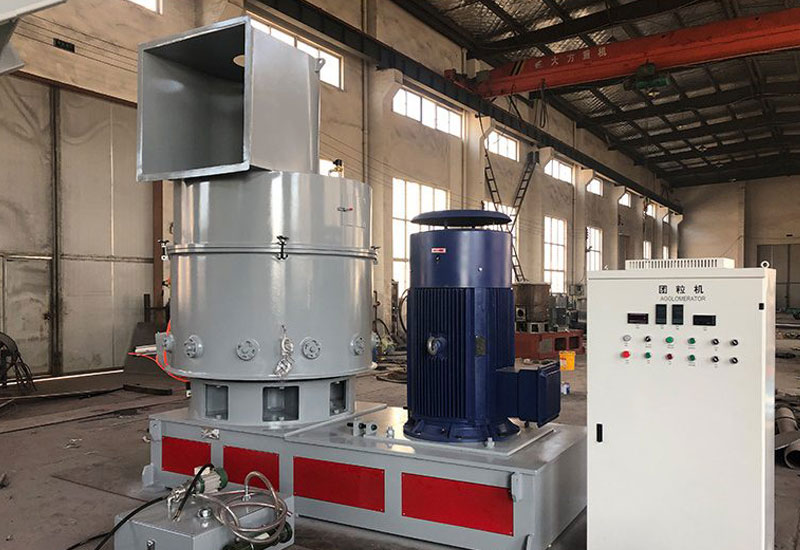

PRODUCT DISPLAY
