Product Application

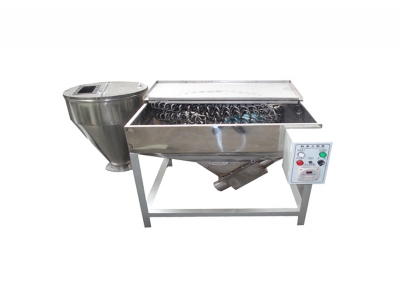

This machine can be used with different extruders to automatically transfer plastic powder into the hopper from storage tank. The charging procedure is controlled by a level indicator to make it charge automatically. This ensures consistent material supply to the extruder without manual intervention.
Key advantage: Level indicator control provides fully automatic operation — eliminates manual material handling and ensures consistent extruder feed.
Key Features
Stable performance
Save labor cost
Stable & reliable
Automatic level control
Product Features
Stable Performance
Designed for continuous operation with consistent, reliable material feeding — no fluctuations in material flow.
Save Labor Cost
Fully automatic operation eliminates the need for manual material handling — reduces labor expenses and human error.
Stable & Reliable
Robust construction and proven design ensure long-term reliability with minimal maintenance requirements.
Level Indicator Control
The charging procedure is controlled by a level indicator that monitors material level in the hopper. When material level drops below a set point, the feeder automatically activates to refill. When the hopper is full, the feeder stops — ensuring consistent material supply without overflow.
Extruder Compatibility
This machine can be used with different extruders — adaptable to various extrusion line configurations and material types.
Product Parameters
| Model | ZJF100 | ZJF300 | ZJF700 |
|---|---|---|---|
| Registered transfer capacity (kg/h) | 100 | 300 | 700 |
| Hopper volume (kg) | 100 | 120 | 150 |
| Spring diameter (mm) | φ30 | φ36 | φ59 |
| Max. transfer capacity (kg/h) | 200 | 450 | 1000 |
| Length transfer pipe and spring (m) | 3 | 3-5 | 3-5 |
| Storage tank volume (kg) | 120 | 150 | 200 |
| Motor power (kw) | 1.1 | 1.1 | 2.75 |
| Appearance size (mm) |
φ650×980 850×620×740 |
φ650×1162 905×655×840 |
φ820×1550 950×950×960 |
| Weight (kg) | 120 | 150 | 250 |
Product Application
This machine can be used with different extruders to automatically transfer the plastic powder into hopper from storage tank. The charging procedure is controlled by level indicator to make it charge automatically. The features of this machine are as follows: stable performance, save labor cost and stable & reliable, etc.
Technical Parameters
| Model | ZJF100 | ZJF300 | ZJF700 |
| Registered transfer capacity(kg/h) | 100 | 300 | 700 |
| Hopper volume(kg) | 100 | 120 | 150 |
| Spring diameter(mm) | φ30 | φ36 | φ59 |
| Max. transfer capacity(kg/h) | 200 | 450 | 1000 |
| length transfer pipe and spring(m) | 3 | 3-5 | 3-5 |
| Storage tank volume(kg) | 120 | 150 | 200 |
| motor power(kw) | 1.1 | 1.1 | 2.75 |
| Appearance size(mm) | φ650×980 | φ650×1162 | φ820×1550 |
| 850×620×740 | 905×655×840 | 950×950×960 | |
| Weight(kg) | 120 | 150 | 250 |
